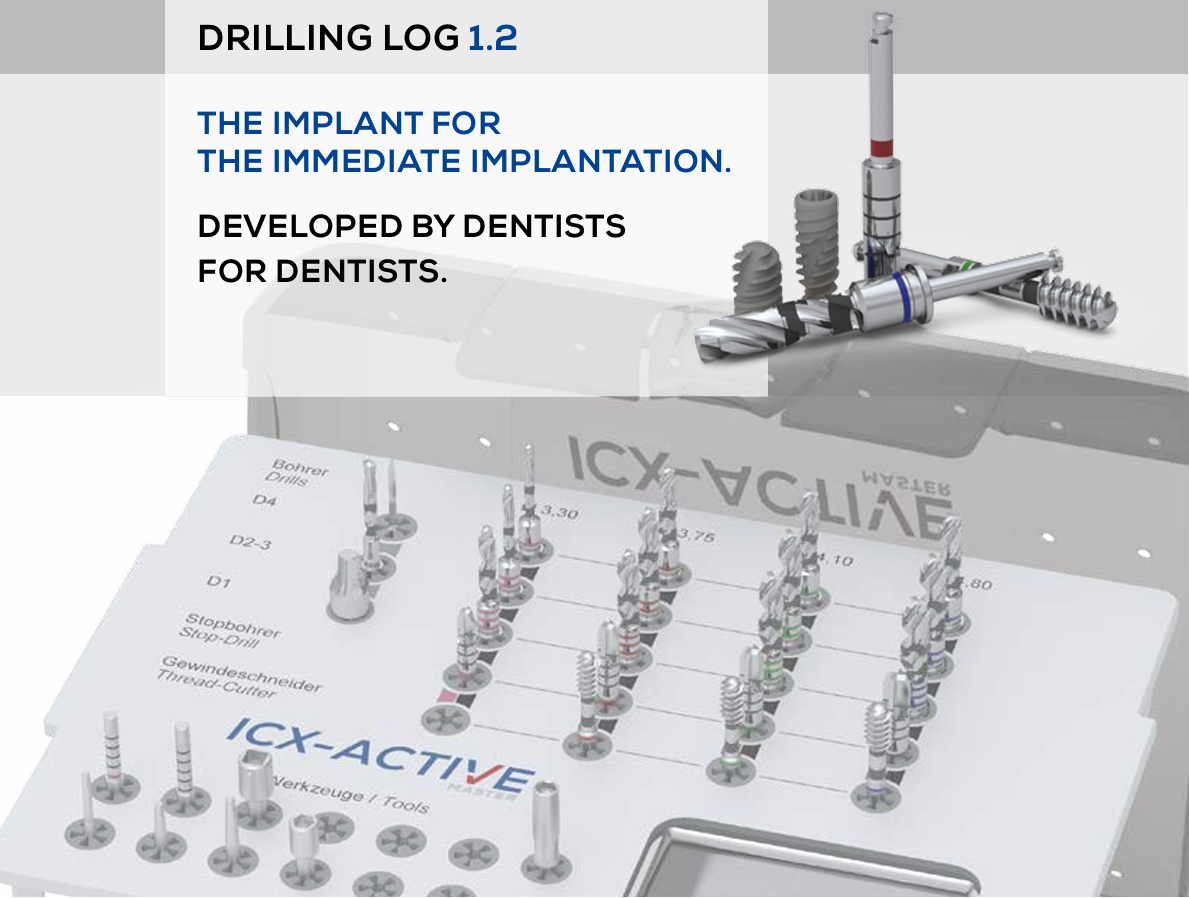

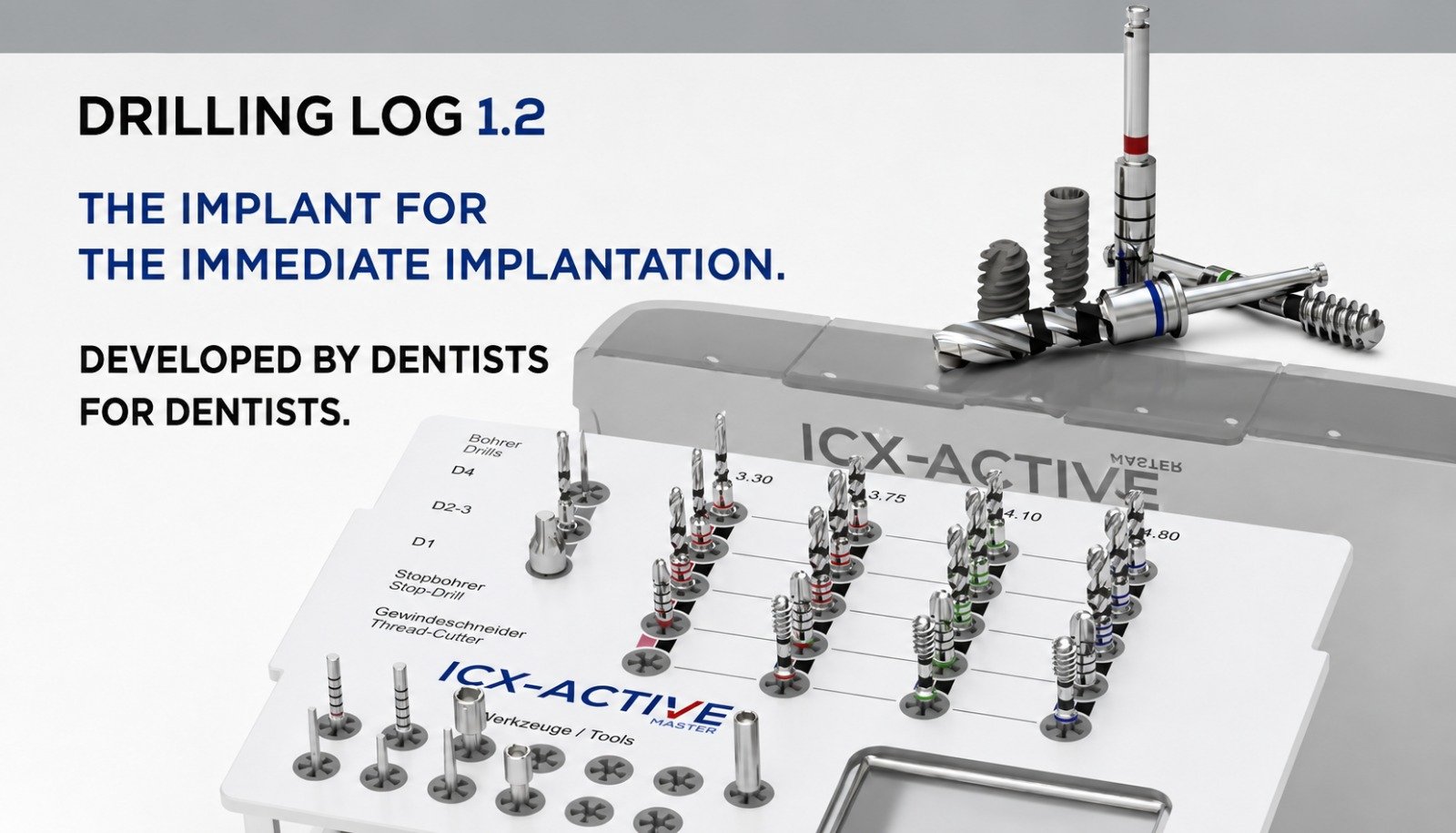

ICX drill kit

ICX-ACTIVE MASTER A CONCEPT-MADE BY DENTISTS FOR DENTISTS.

There are more and more cases where the dentist are being pressured to carry out an immediate implantation in the aesthetically demanding area.
The implant is inserted into the jaw immediately, after extraction into the existing bone compartment of the jaw, and the temporary crown is placed on it. The extracted tooth can replaced immediately. Implantation and immediate loading are only possible, under certain surgical conditions. ICX-ACTIVE-MASTER offers dental professional dentists a very high level of flexibility, with regard to insertion and prosthetic options.

  • High primary stability, even with unfavourable bone conditions
  • Integrated platform switching
  • Active implant alignment for optimal, final insertion
  • Prosthetic connection with dual function

A UNIQUE DESIGN, THAT EXPANDS TREATMENT POSSIBILITIES.

Features such as high primary stability even in unfavourable bone conditions, maximum soft tissue and bone preservation and the adaptable implant alignment will satisfy you as a user.

ICX-ACTIVE-MASTER WAS DESIGNED TO MEET THE CONSTANTLY INCREASING DEMANDS OF SURGEONS AND PROSTHODONTISTS.

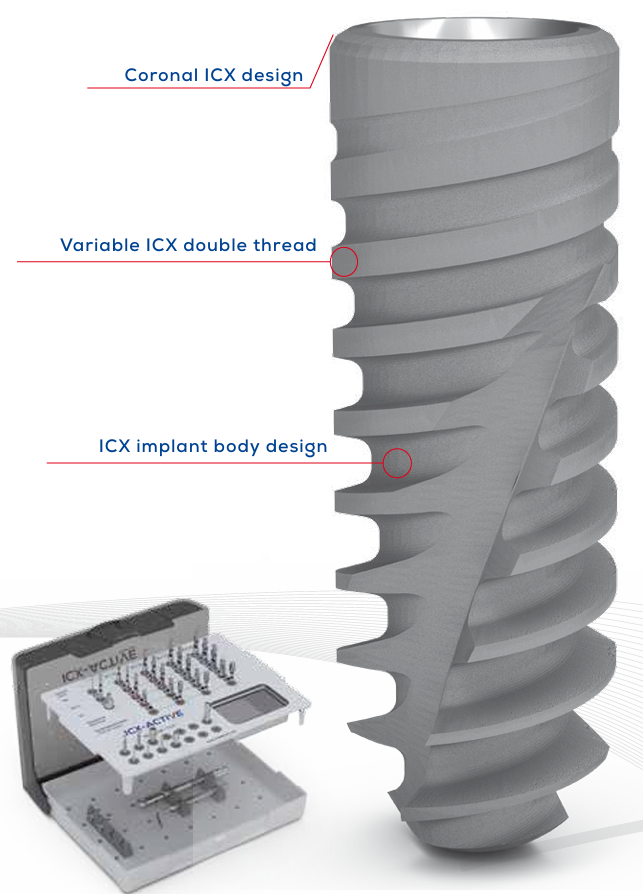

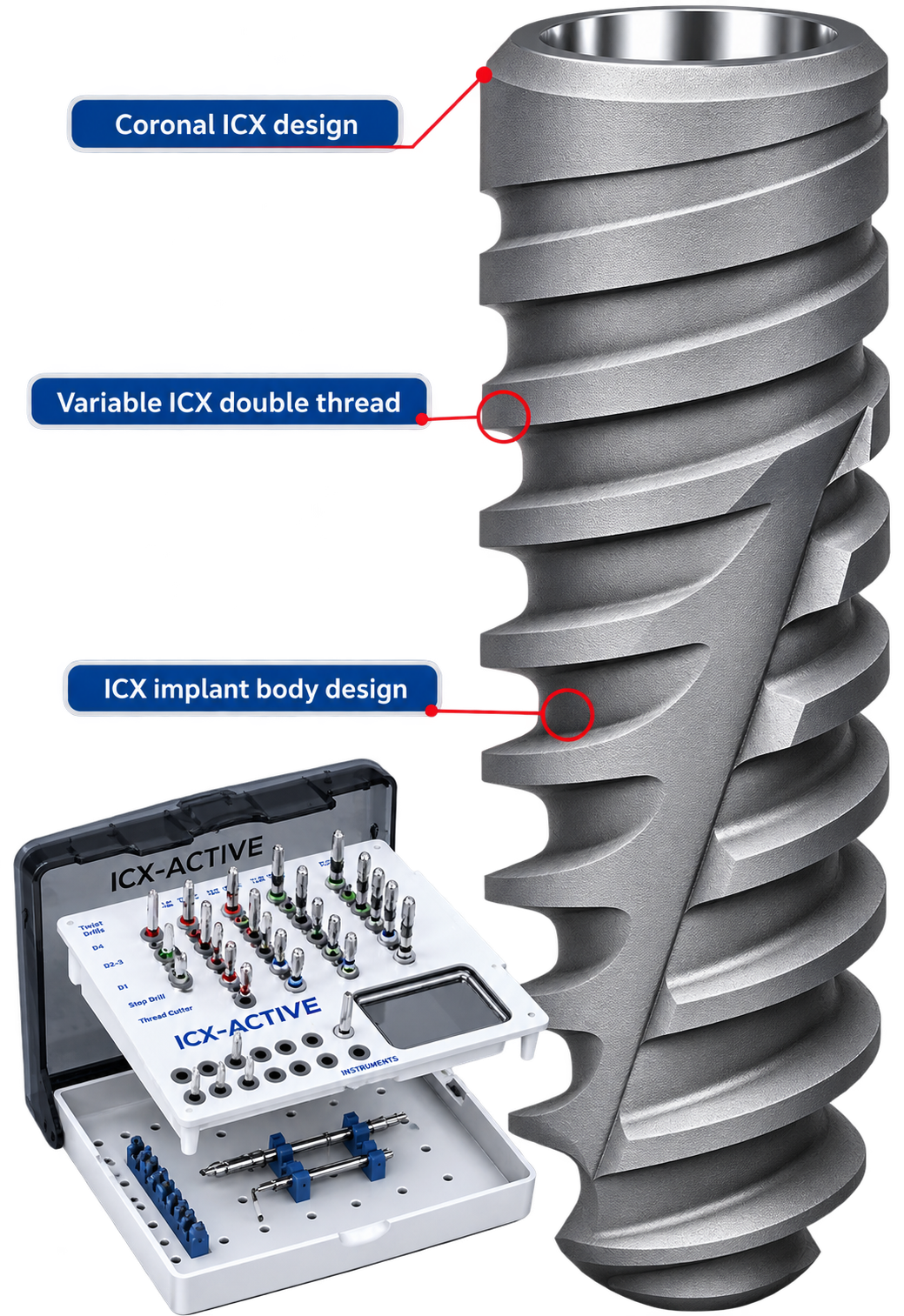

ICX ACTIVE IMPLANT DESIGN

ATTENTION! IMPORTANT INSTRUCTION ATTENTION!

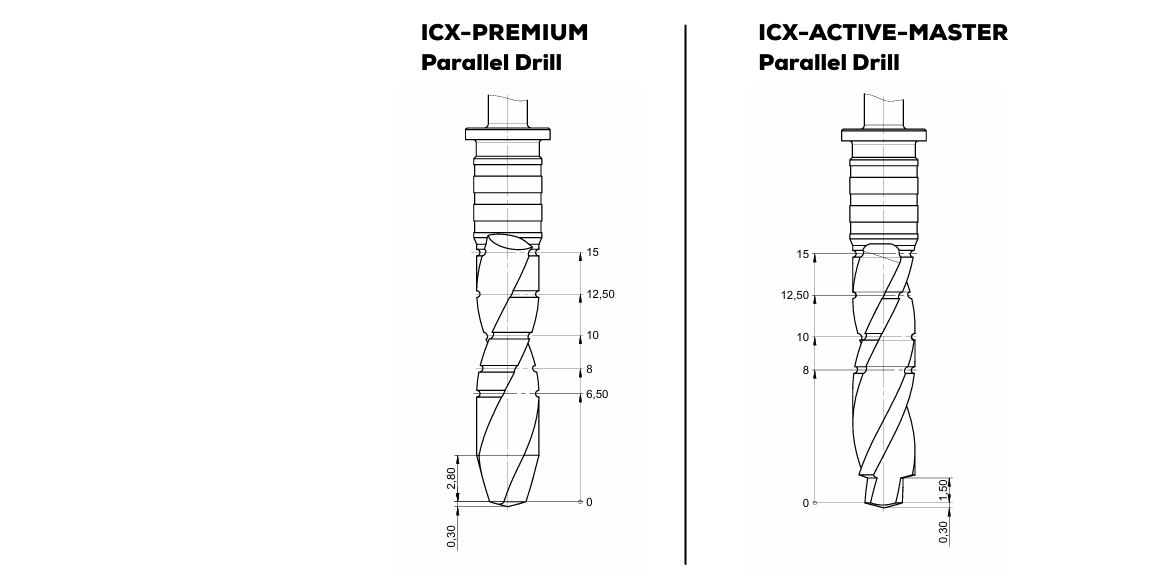

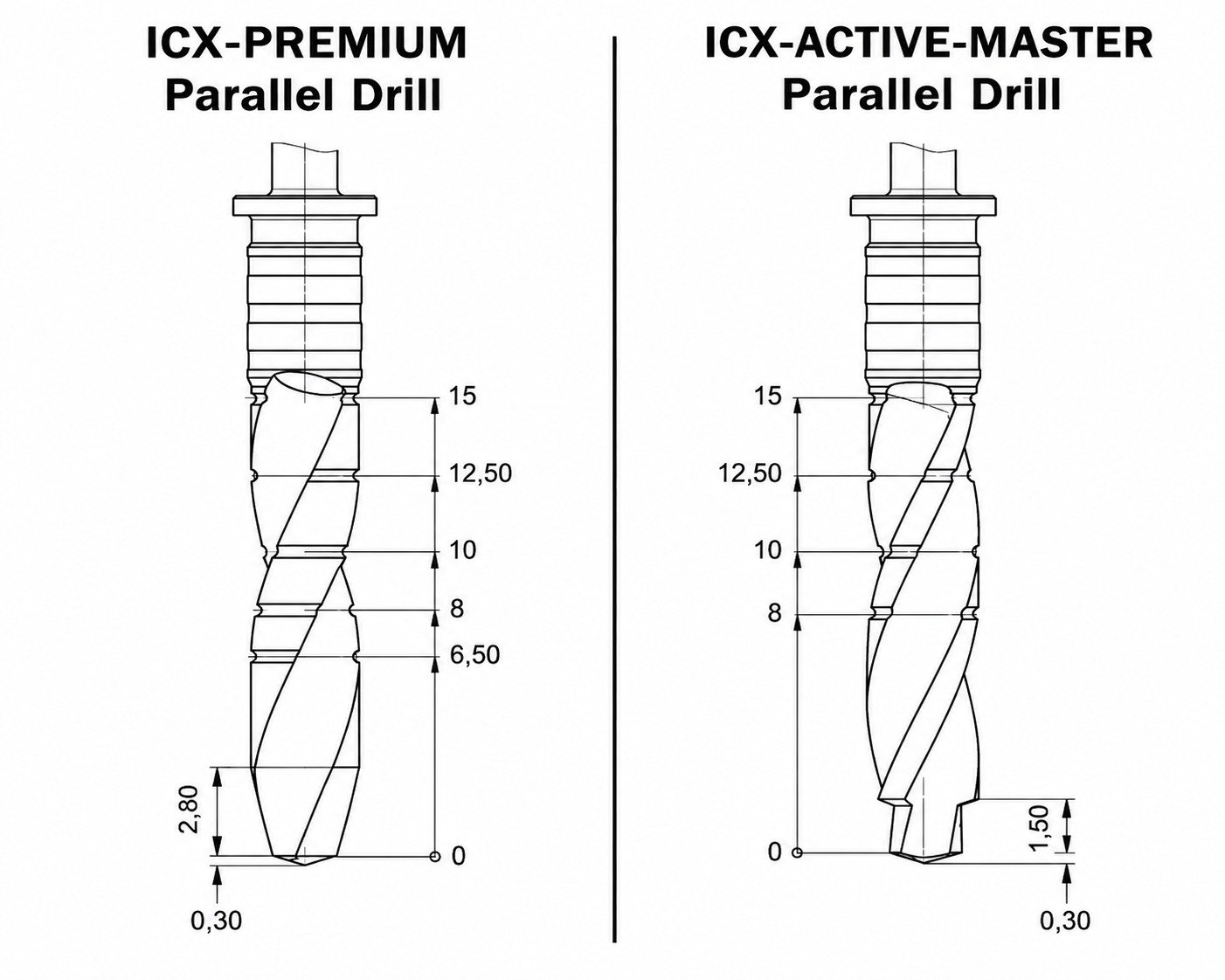

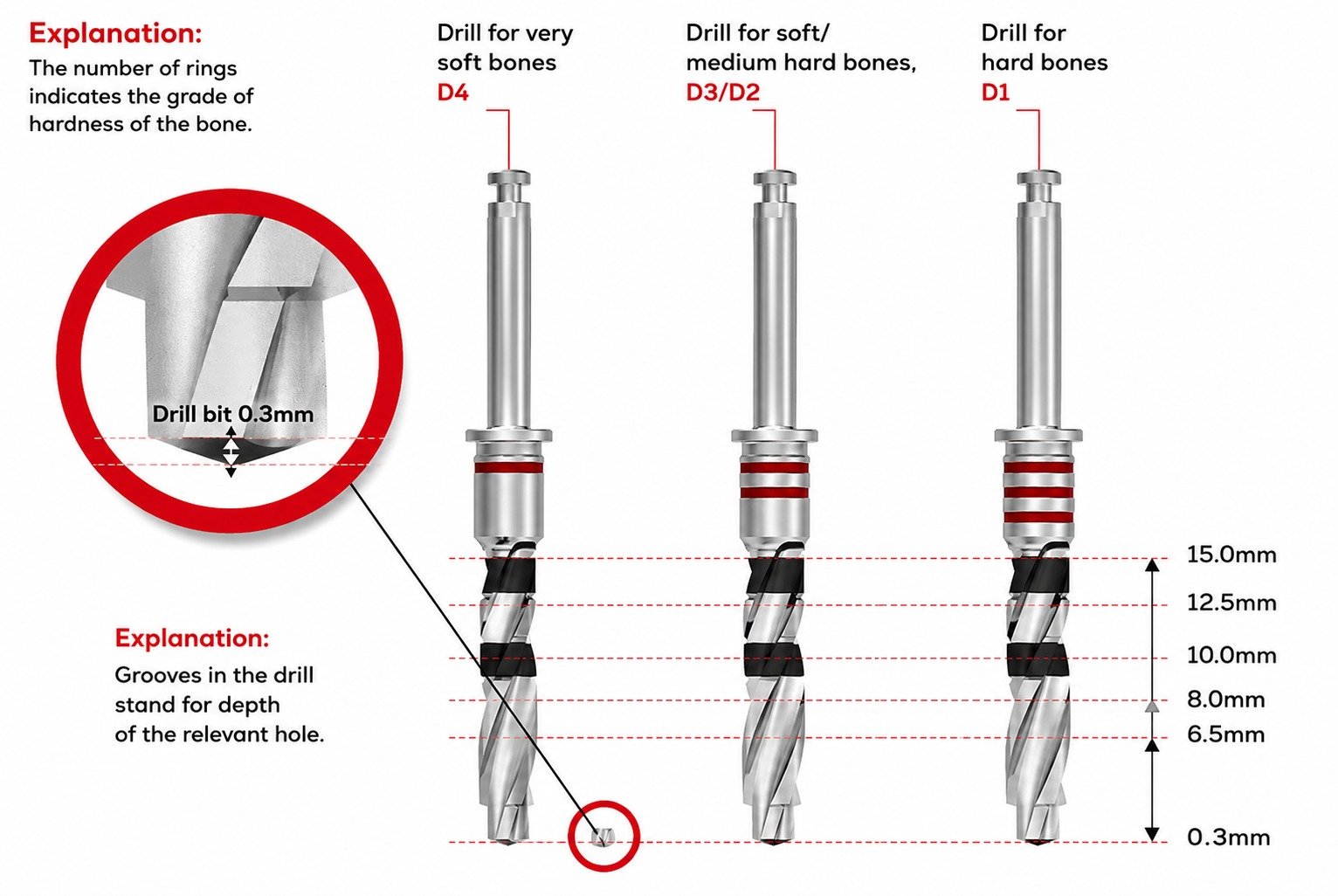

For the ICX-ACTIVE-MASTER as well as for our ICX-PREMIUM drills the drilling length is 0.3mm longer due to the drill tip - It must be made sure, that this additional length is permitted when working in the area of important anatomical structures.

ICX ACTIVE DRILLING PROTOCOL
 ICX ACTIVE MASTER DRILL
ICX-ACTIVE MASTER

ATTENTION! IMMEDIATE IMPLANTATION NEW DRILL PROTOCOL!

 ICX ACTIVE MASTER DRILL 3.75mm implant

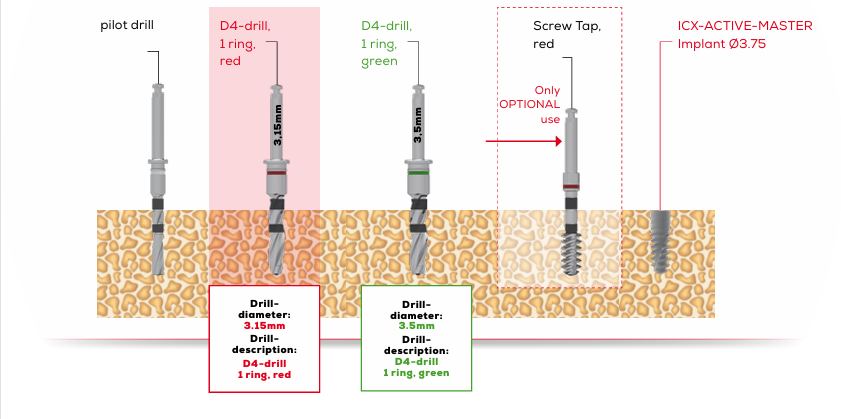

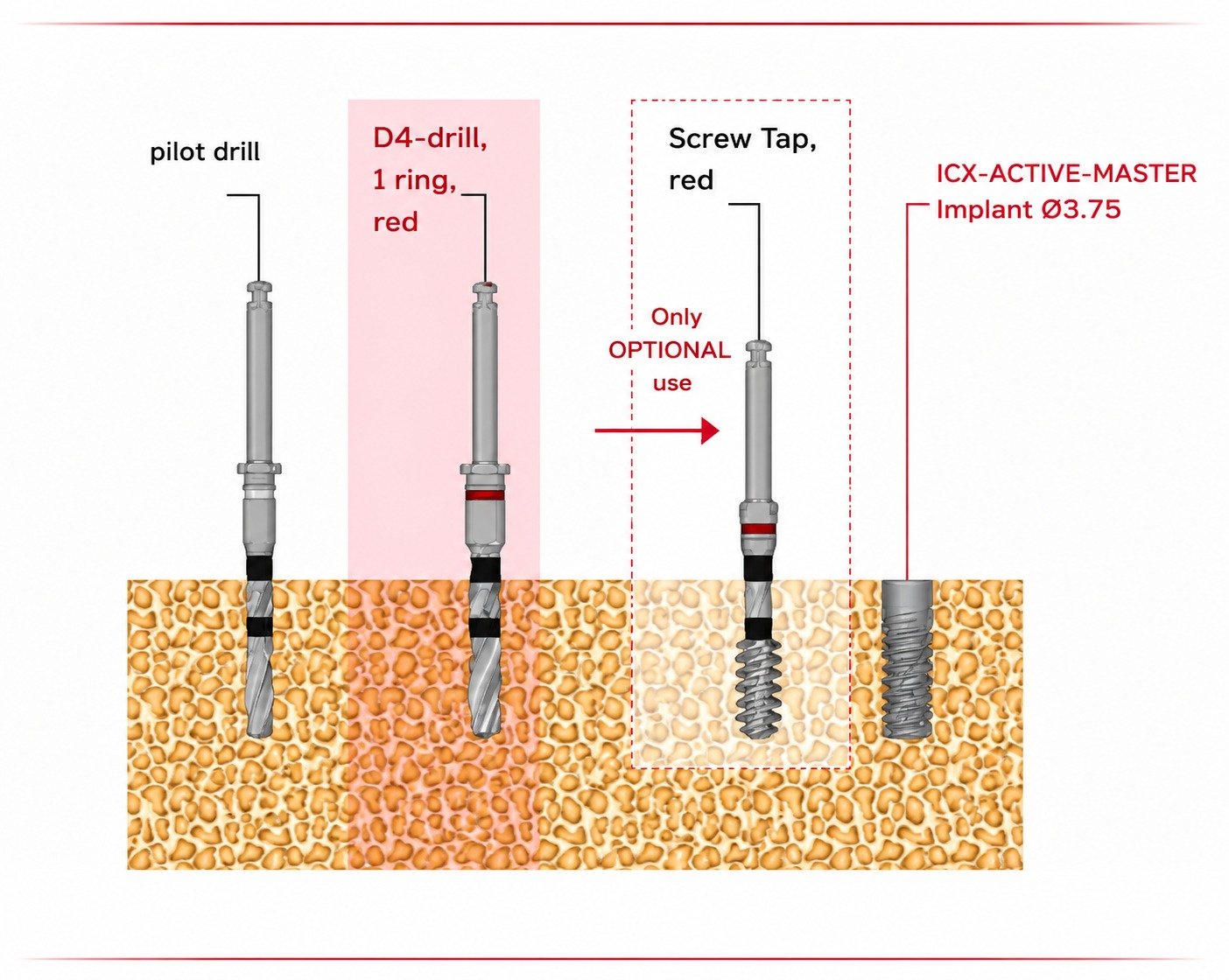

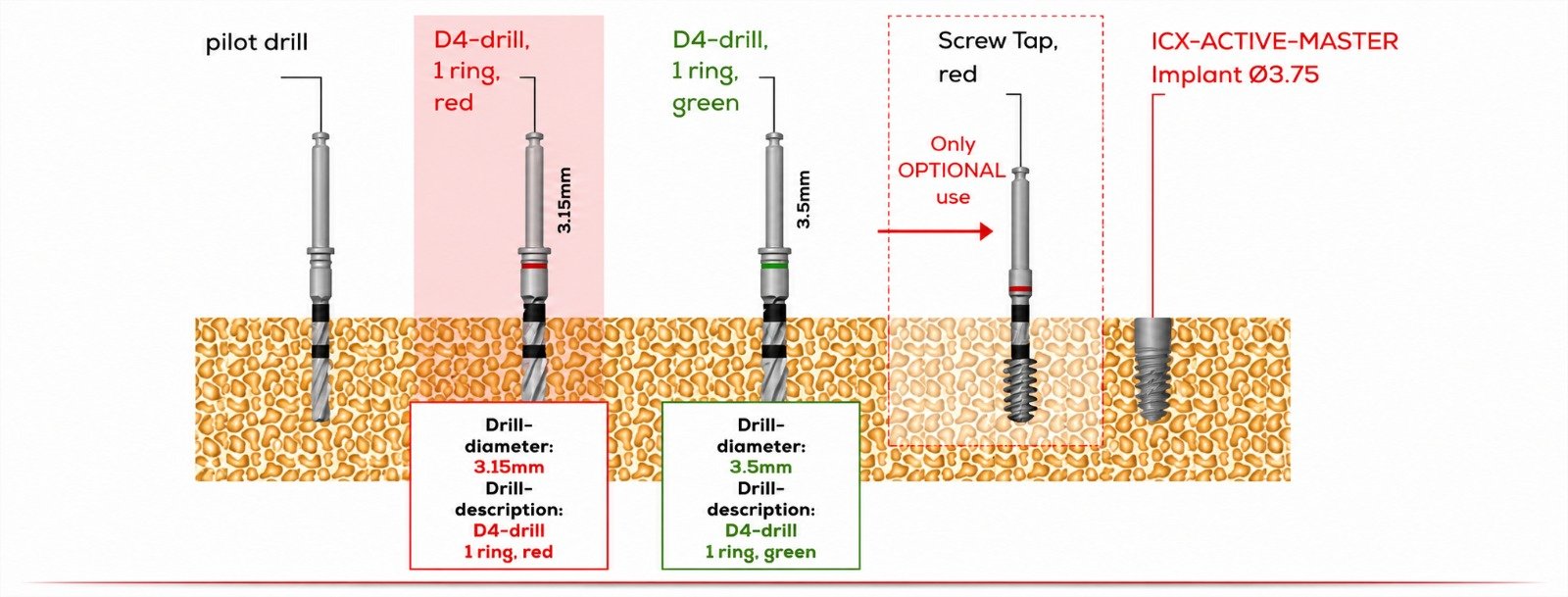

Surgical procedure ICX–ACTIVE-MASTER Ø 3.75mm

IMMEDIATE IMPLANTATION

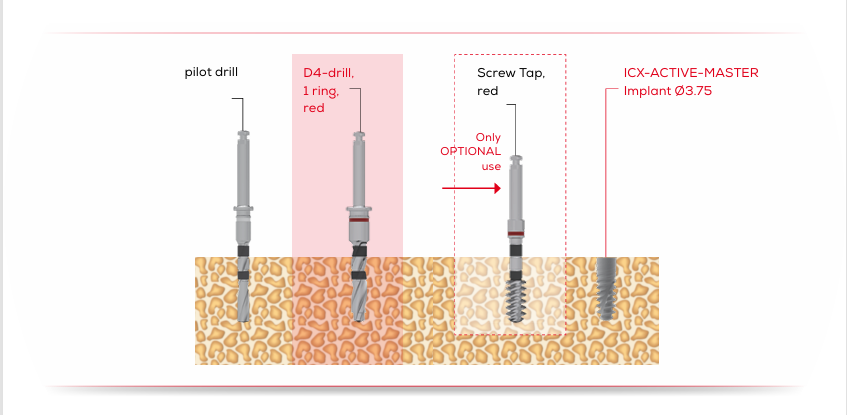

D4 DRILL PROTOCOL FOR VERY SOFT BONE
PLEASE ONLY USE DRILLS WITH 1 COLOUR RING!

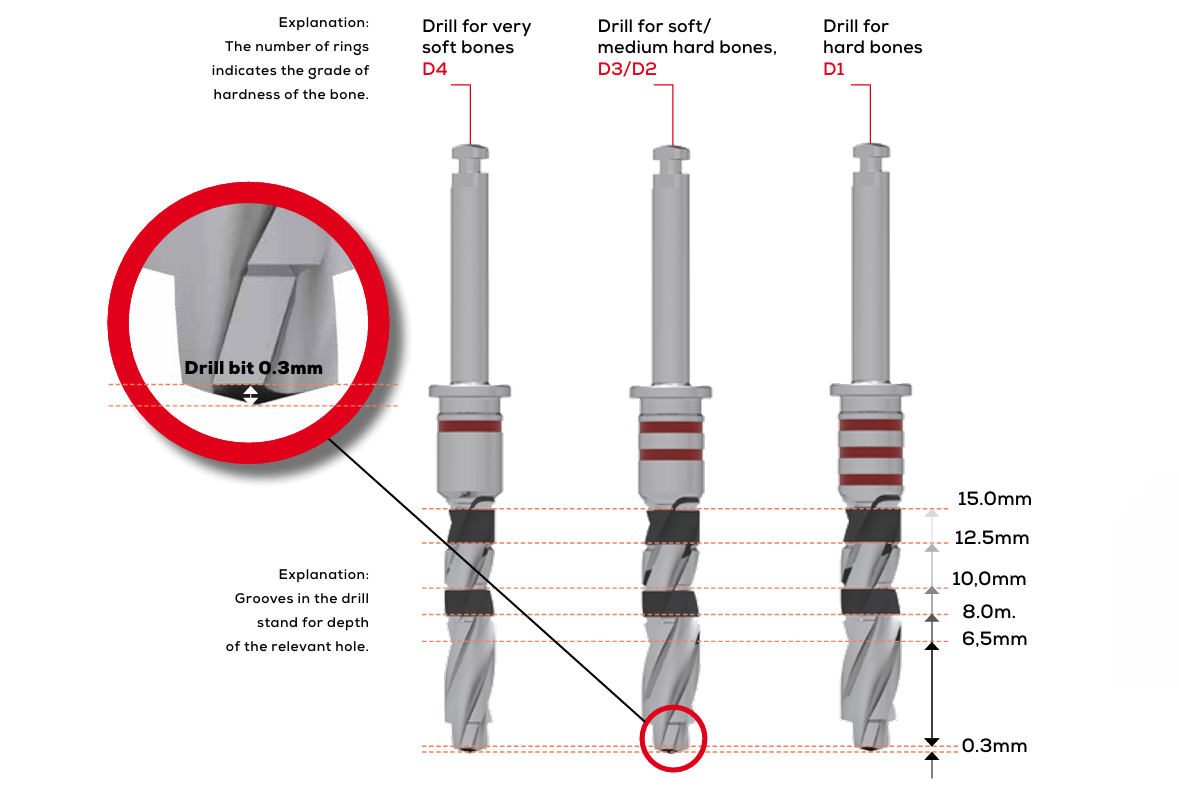

Important information: Drill for very soft bone D4, identify by the colour coding = 1 Red ring

ICX ACTIVE MASTER

Surgical procedure ICX–ACTIVE-MASTER Ø 3.75mm


IMMEDIATE IMPLANTATION

D2/D3 DRILL PROTOCOL
FOR SOFT/MEDIUM HARD BONE

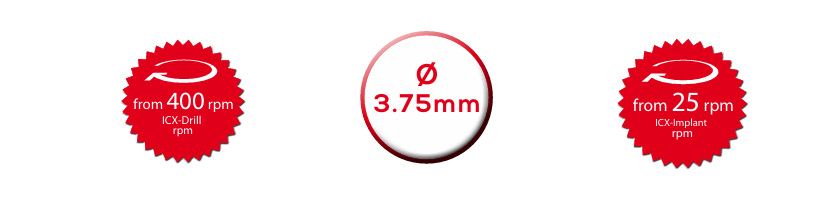

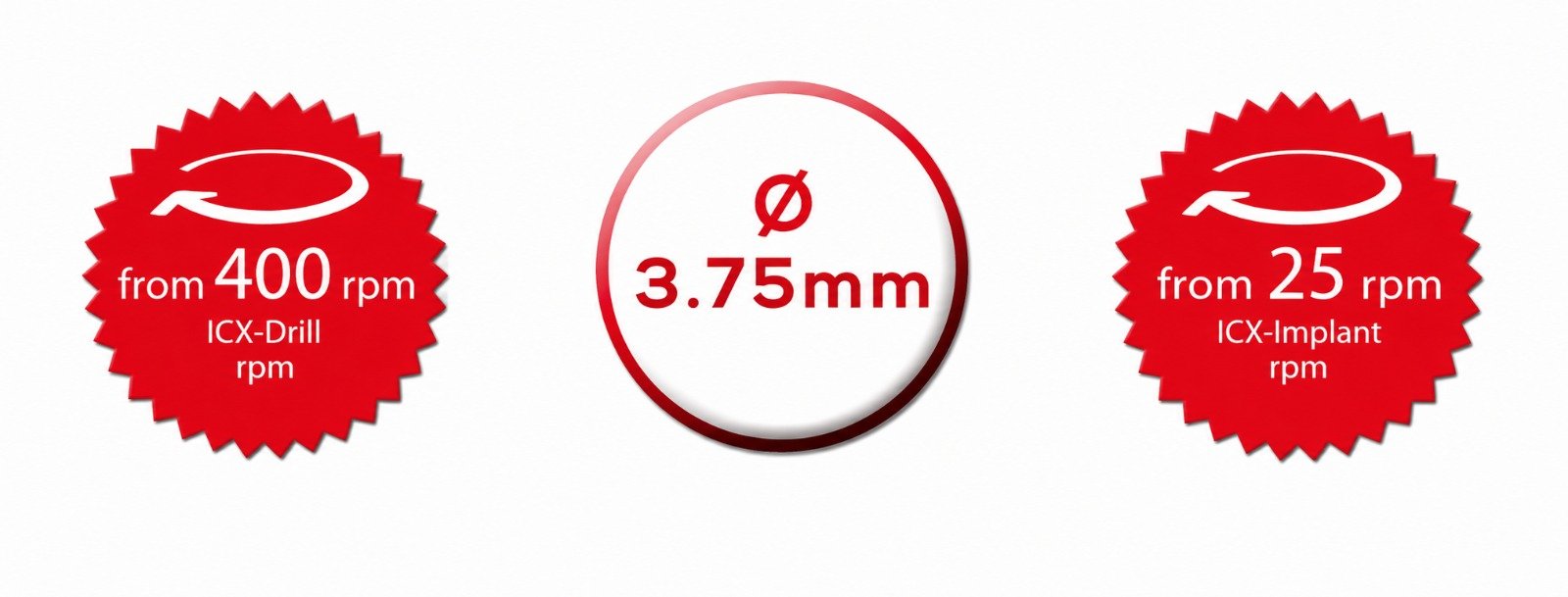

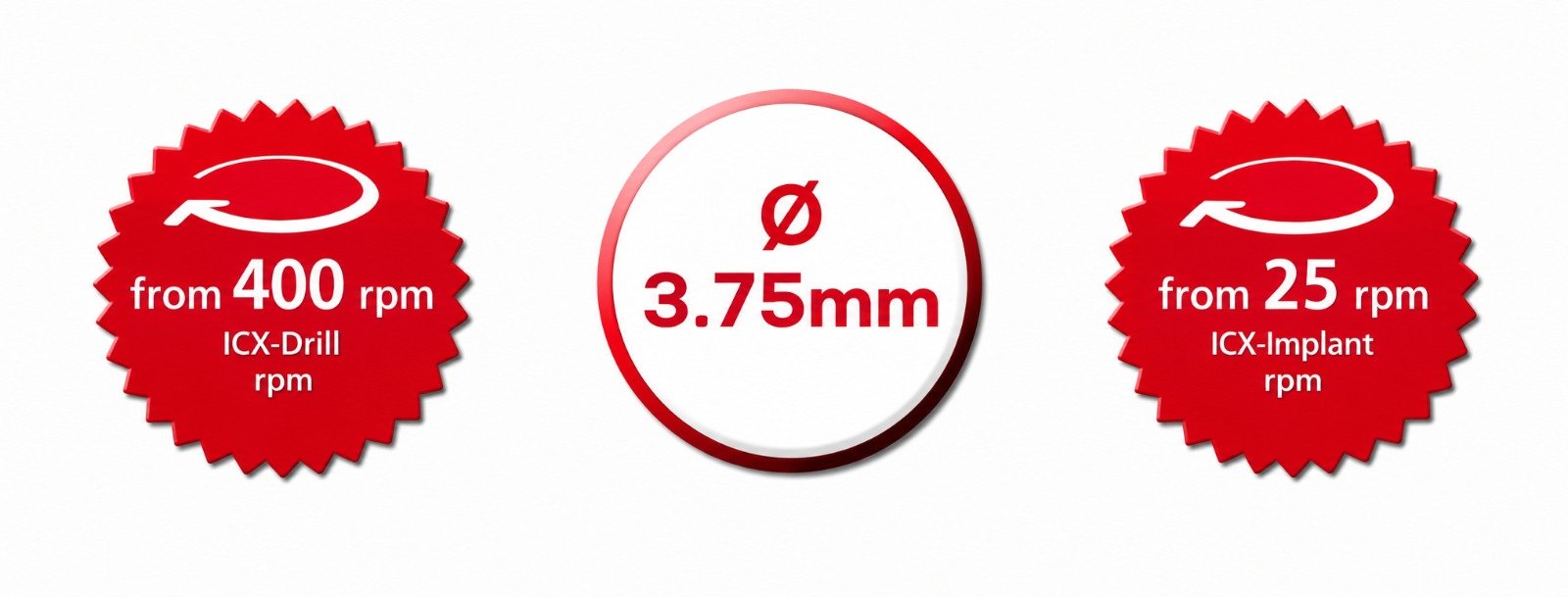

 ICX IMPLANT DRILLING SPEED

ICX-ACTIVE MASTER

Surgical procedure ICX–ACTIVE-MASTER Ø 3.75mm

IMMEDIATE IMPLANTATION

D4 DRILL PROTOCOL FOR VERY SOFT BONE
PLEASE ONLY USE DRILLS WITH 1 COLOUR RING!

Important information: Drill for very soft bone D4, identify by the colour coding = 1 green ring

ICX-ACTIVE MASTER

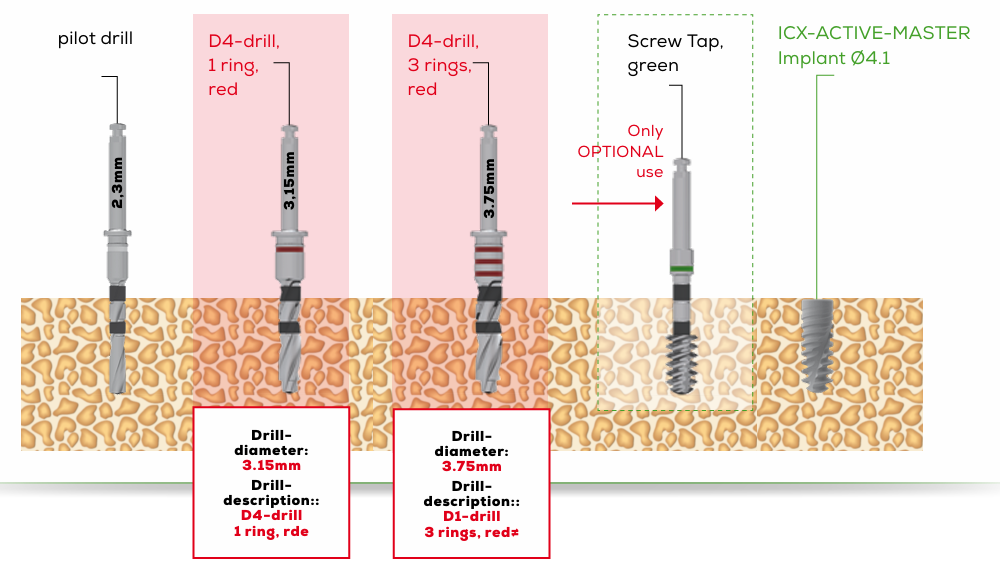

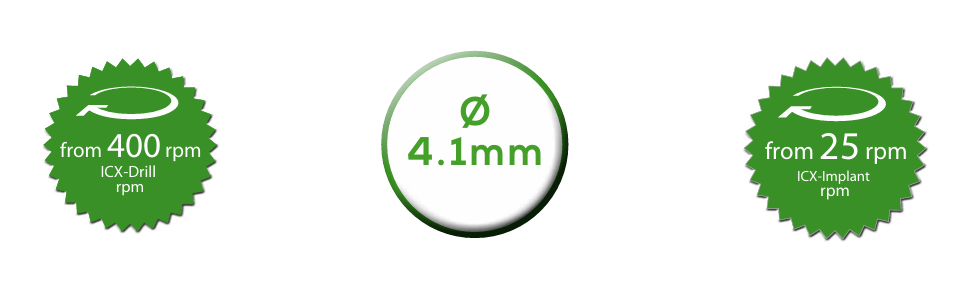

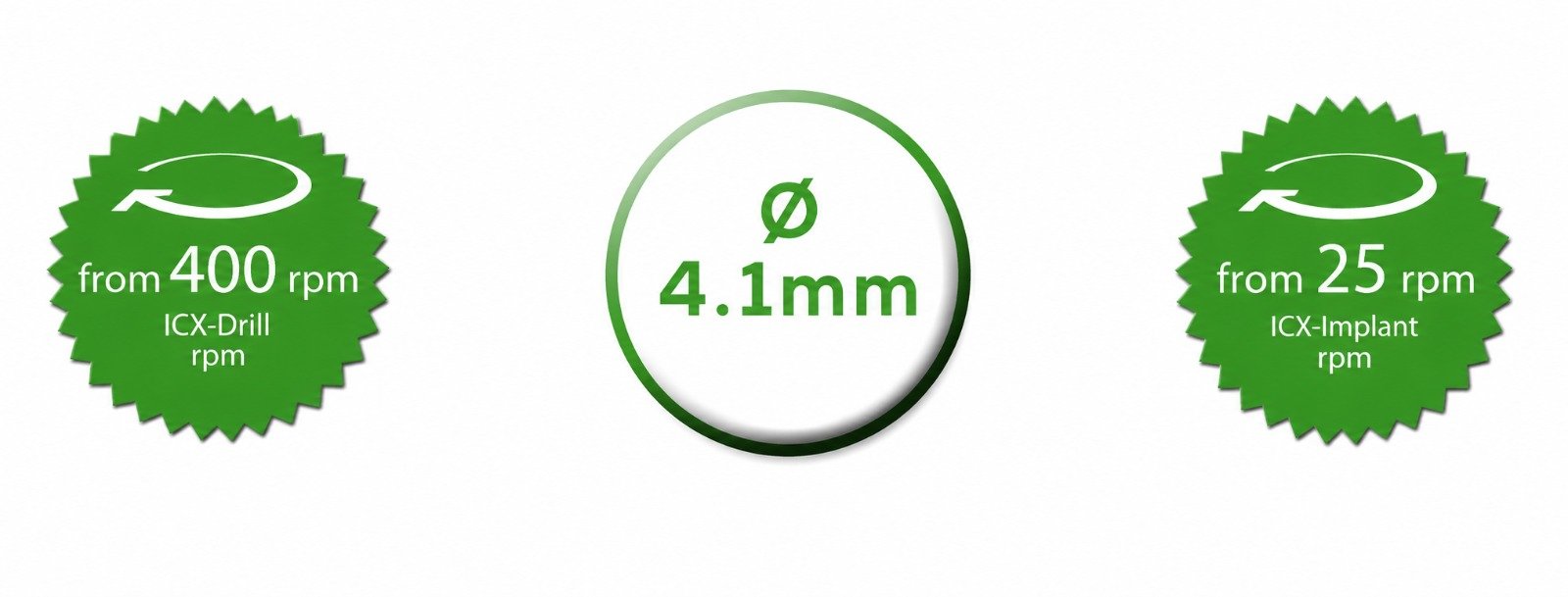

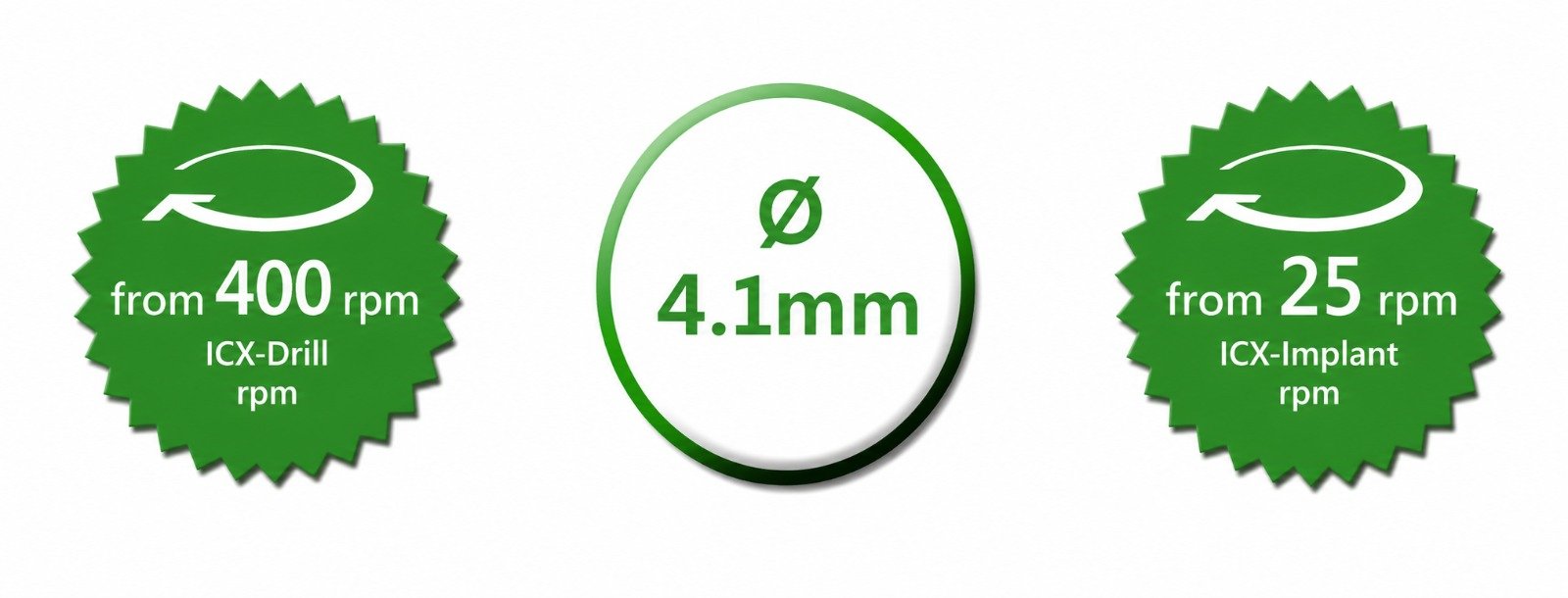

Surgical procedure ICX–ACTIVE-MASTER Ø 4.1mm

 ICX ACTIVE MASTER DRILL PROTOCOL 4.1mm implant

IMMEDIATE IMPLANTATION

D2/D3 DRILL PROTOCOL
FOR SOFT/MEDIUM HARD BONE

ICX ACTIVE MASTER

ICX ACTIVE MASTER

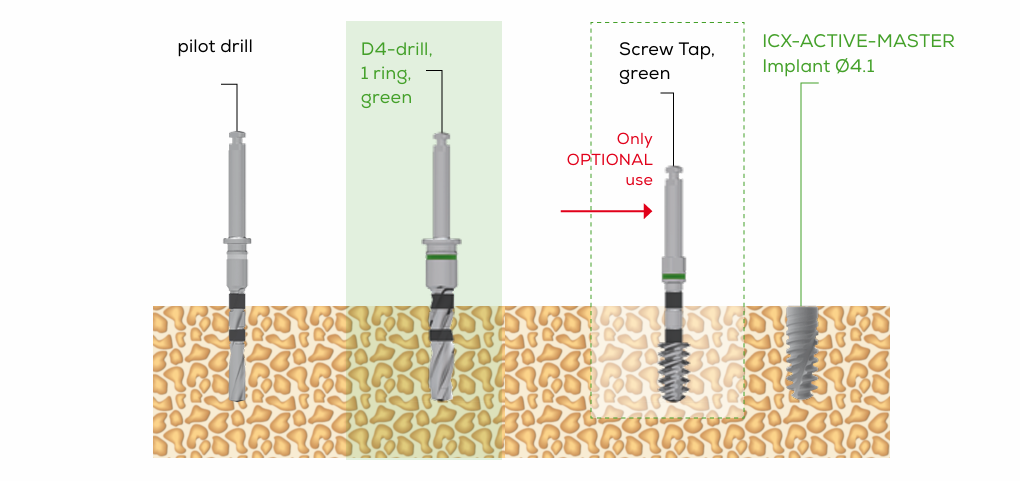

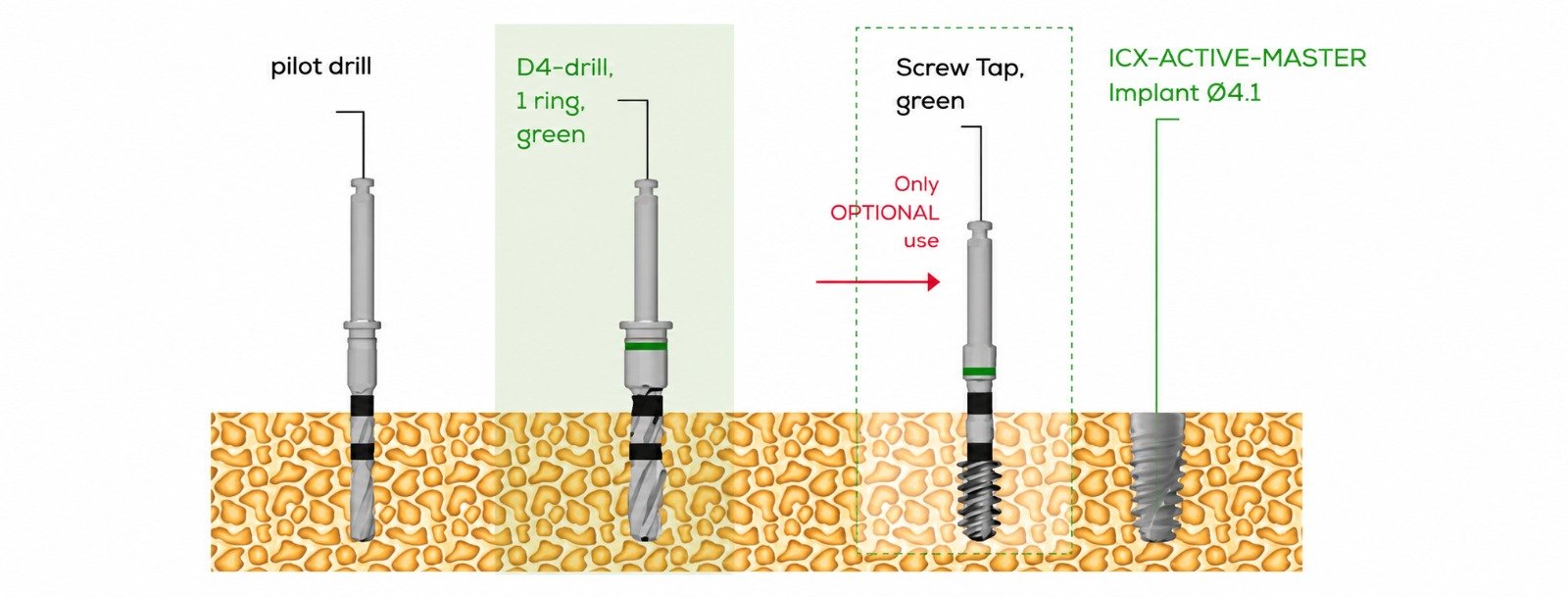

Surgical procedure ICX–ACTIVE-MASTER Ø 4.1mm

IMMEDIATE IMPLANTATION

D4 DRILL PROTOCOL FOR VERY SOFT BONE
PLEASE ONLY USE DRILLS WITH 1 COLOUR RING!

Important information: Drill for very soft bone D4, identify by the colour coding = 1 Blue ring

ICX ACTIVE MASTER

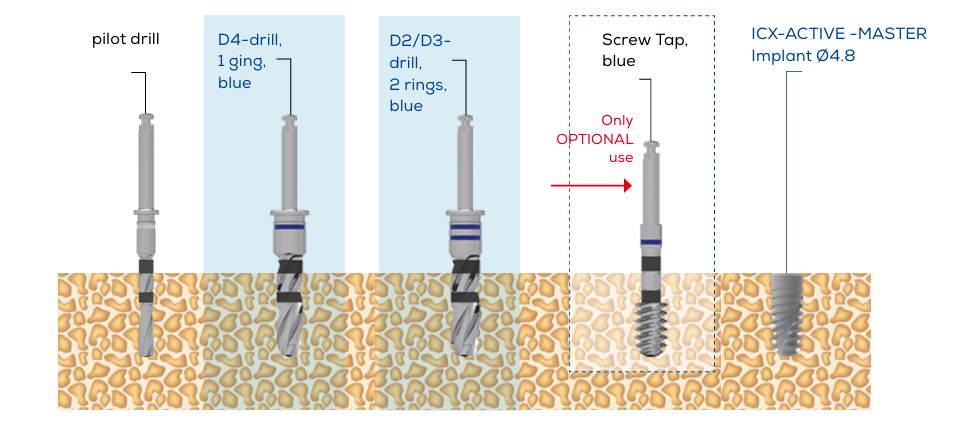

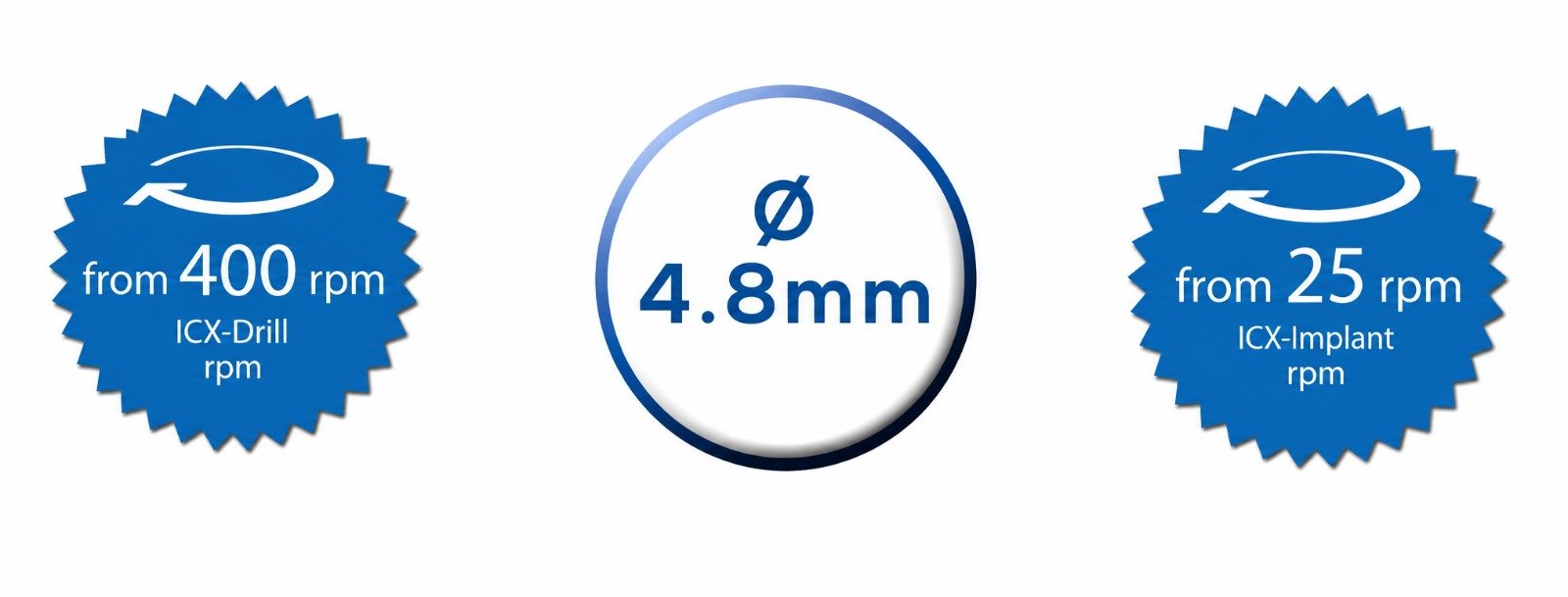

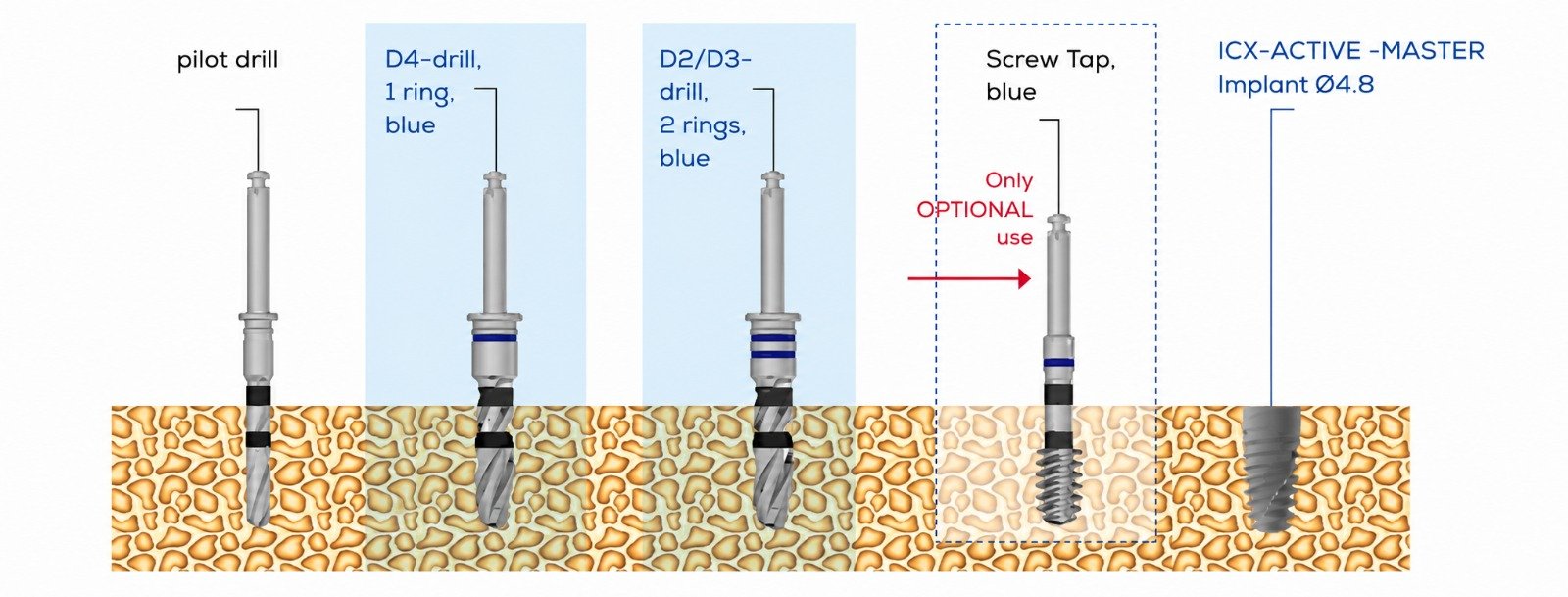

Surgical procedure ICX–ACTIVE-MASTER Ø 4.8mm

ICX ACTIVE MASTER DRILL PROTOCOL 4.8mm implant

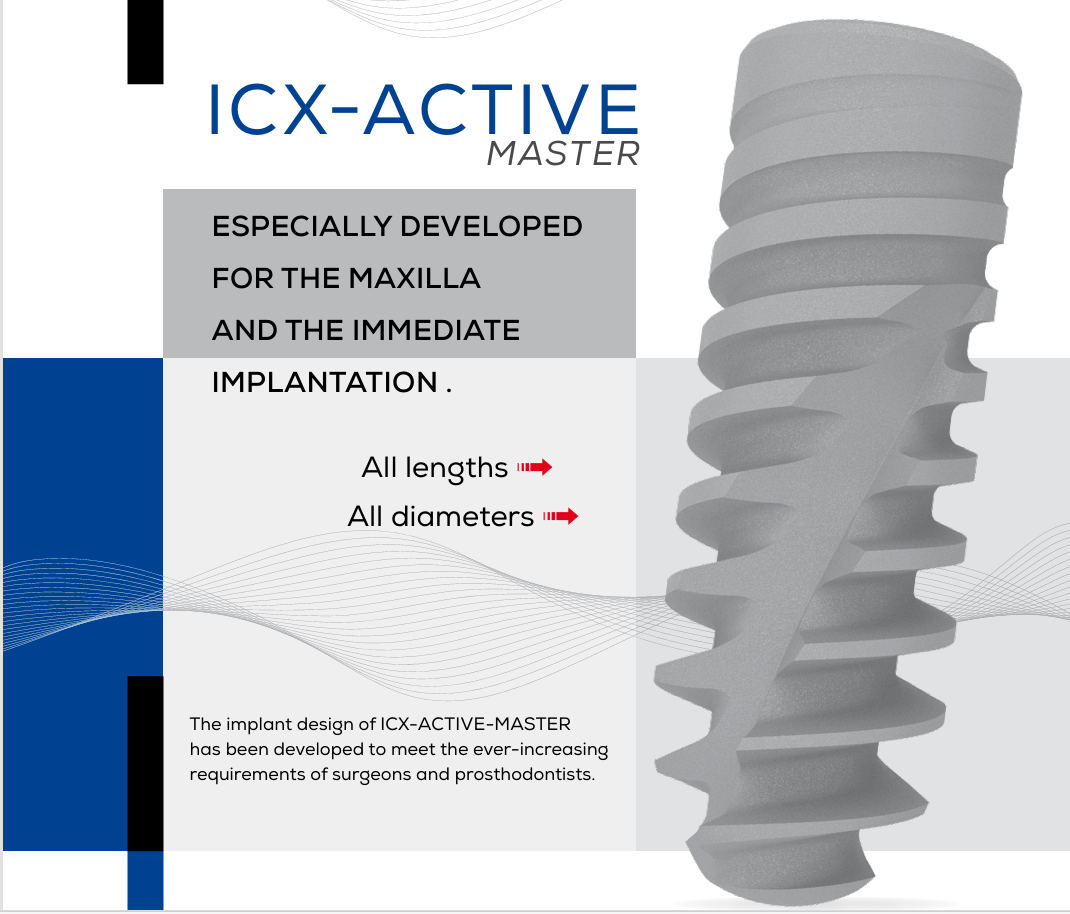

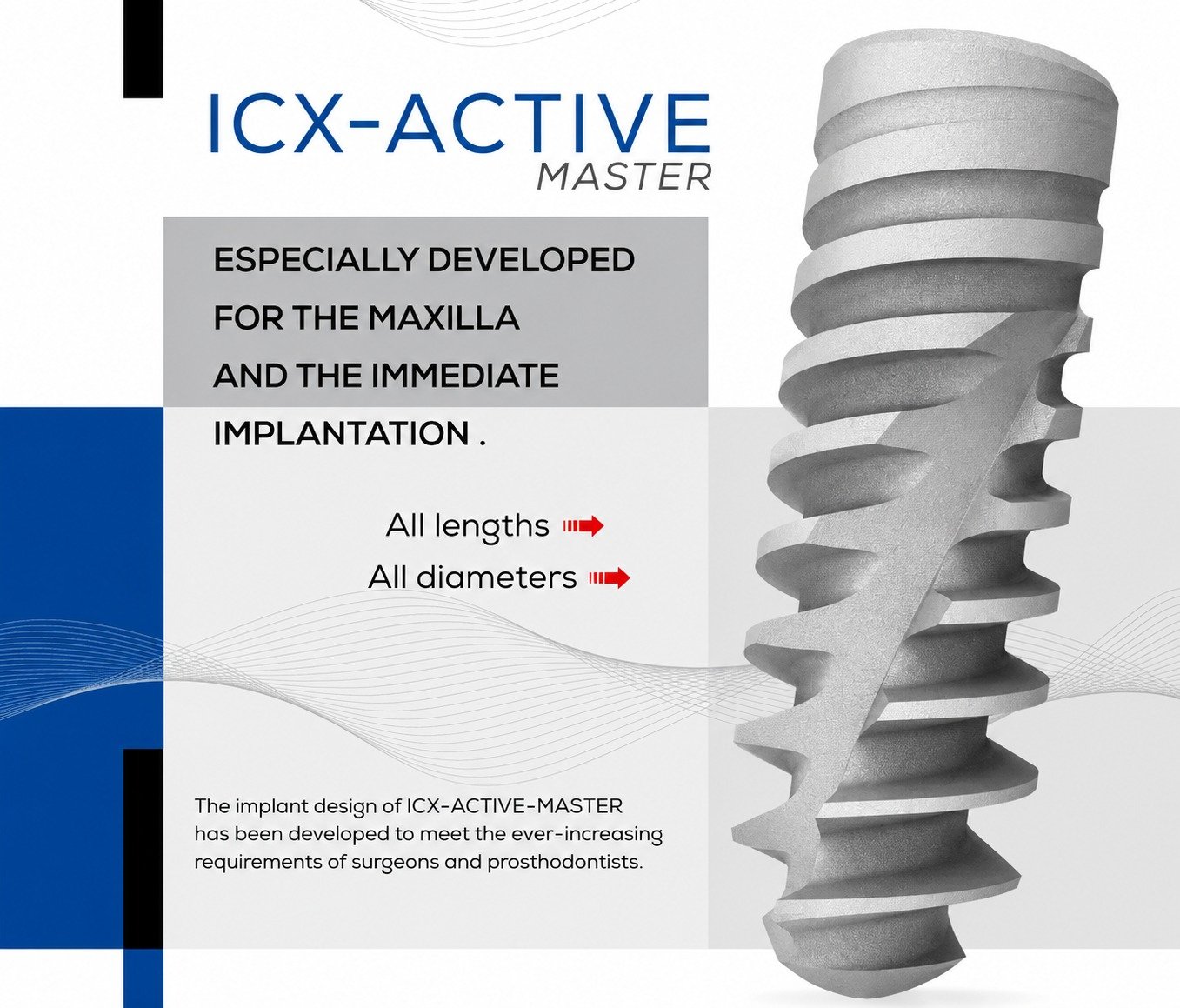

ESPECIALLY DEVELOPED FOR THE MAXILLA AND THE IMMEDIATE IMPLANTATION

ICX ACTIVE IMPLANT
